Product Specifications

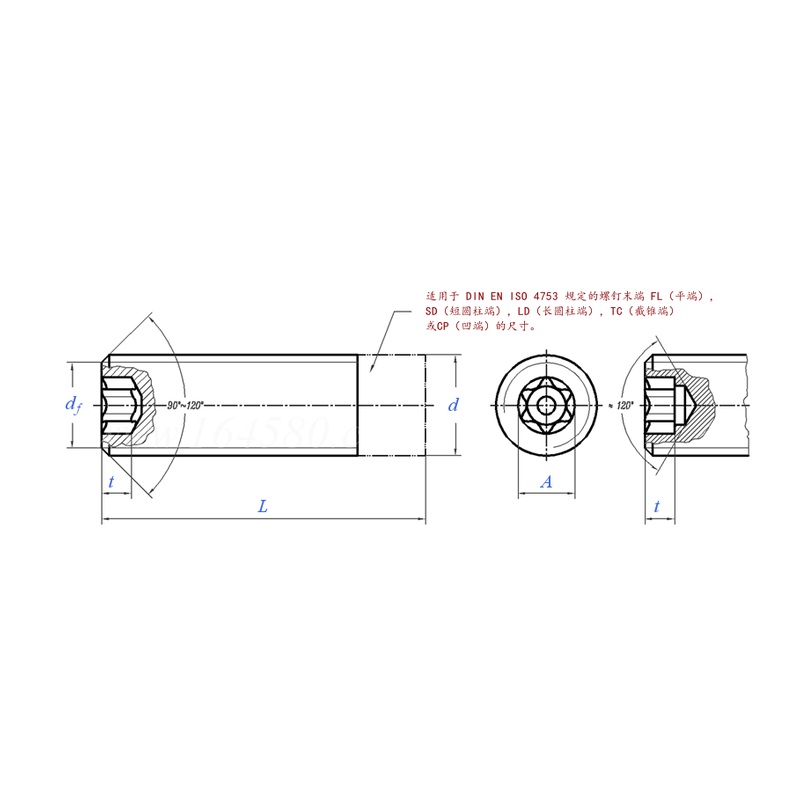

| Model / Specification | M3-M24 |
| Material | Stainless steel, Alloy steel |
| Thread size d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | ||
| Socket | 6 | 8 | 10 | 15 | 25 | 30 | 40 | 50 | 55 | 60 | ||
| A | Ref. | 1.75 | 2.4 | 2.8 | 3.35 | 4.5 | 5.6 | 6.75 | 8.95 | 11.35 | 13.45 | |
| t | Min. | 0.80 | 1 | 1.3 | 1.6 | 2.7 | 2.9 | 3.2 | 4.3 | 5.3 | 6.8 | |
| Max. | 0.95 | 1.2 | 1.55 | 1.9 | 3.1 | 3.3 | 3.6 | 4.75 | 5.75 | 7.25 | ||
| Weight ≈ kg / 1000 pcs | - | - | - | - | - | - | - | - | - | - | ||
Dimensions in mm. The bracketed sizes ((4.5), (5.5), (7)) are non-preferred. Data compiled from DIN 34827-2016 for selection reference only; actual supply is subject to drawings and inspection reports.
Product Overview

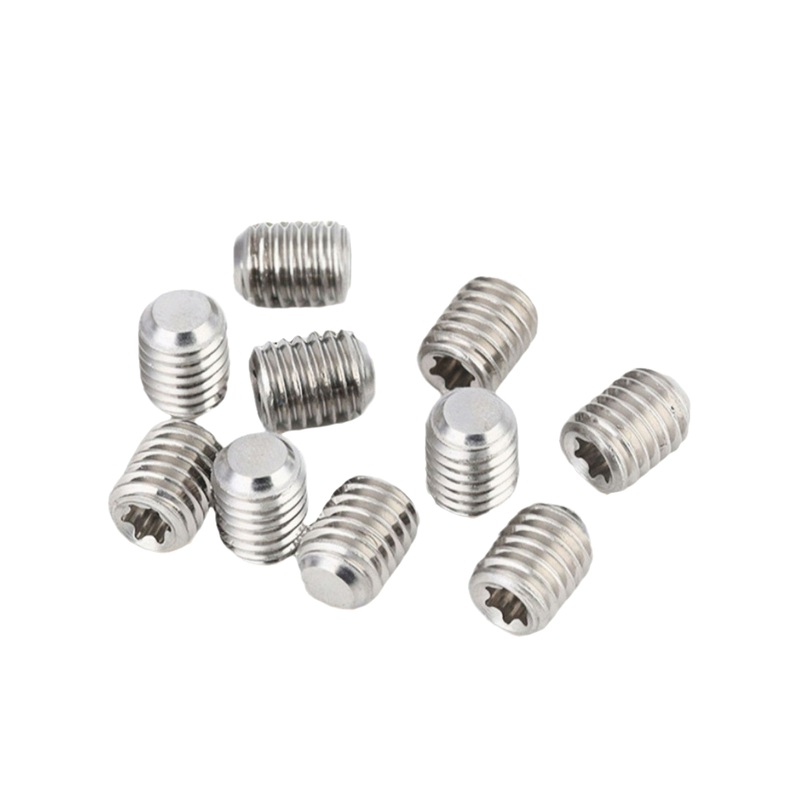

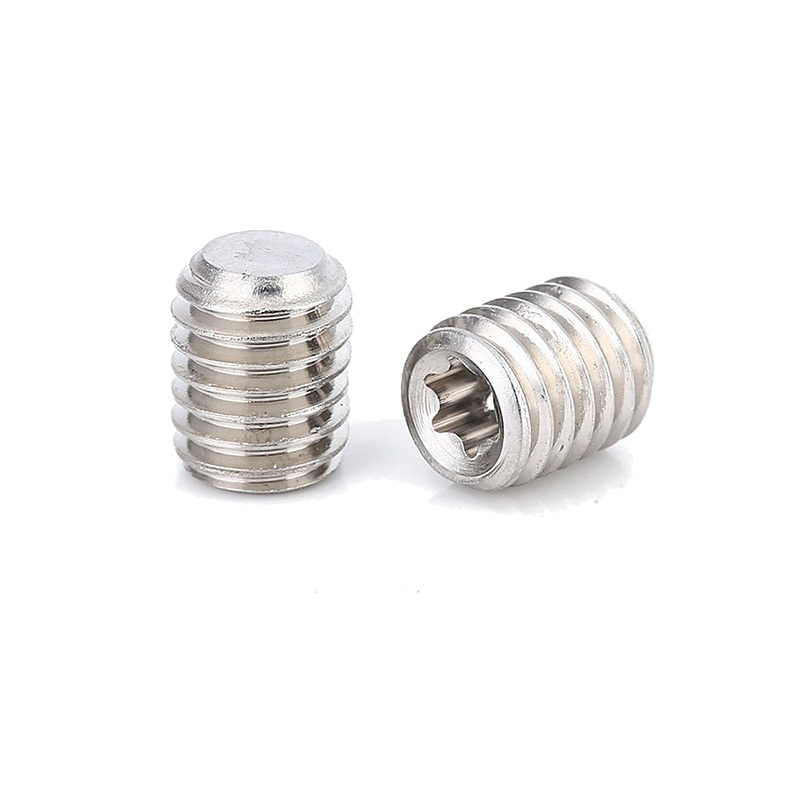

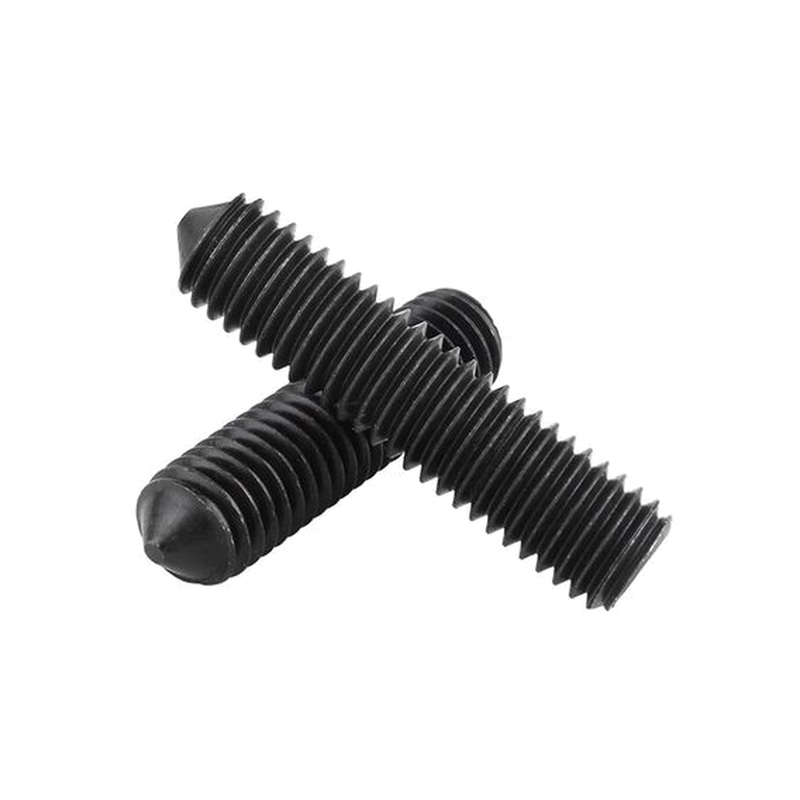

The hexalobular (Torx) socket set screw is manufactured to DIN 34827-2016. A set screw has no head: the whole body is a threaded cylinder with a hexalobular (Torx) socket at one end. It is used to fix the relative position of a shaft and hub and to prevent axial movement of parts. The hexalobular socket transmits high torque and resists cam-out, and is widely used in machinery, electronics, precision equipment and applications that need flush fastening.
1. Product Features
- Headless set screw that can sink fully into the joined part without protruding.
- Hexalobular (Torx) drive with high torque transmission and strong cam-out resistance.
- High thread accuracy and reliable positioning.
- Sizes from M3 to M24, lengths from 2.5 to 80 mm.
- Materials: stainless steel 304/316, alloy steel, brass, aluminium alloy, titanium alloy and nylon.
2. Product Advantages
- The headless design saves space and suits compact structures.
- High drive torque and cam-out resistance give reliable assembly.
- High degree of standardisation: the DIN 34827 dimensional system is complete, which simplifies export matching and second sourcing.
- Material and surface finish can be customised (natural, blackened, eco zinc plated, anti-loosening).
3. Application Scope
- Fixing the relative position of shafts and hubs in machinery.
- Flush fastening in precision equipment and electronic products.
- Positioning and locking in moulds, jigs and fixtures.
- Stainless steel versions suit damp or mildly corrosive environments.
