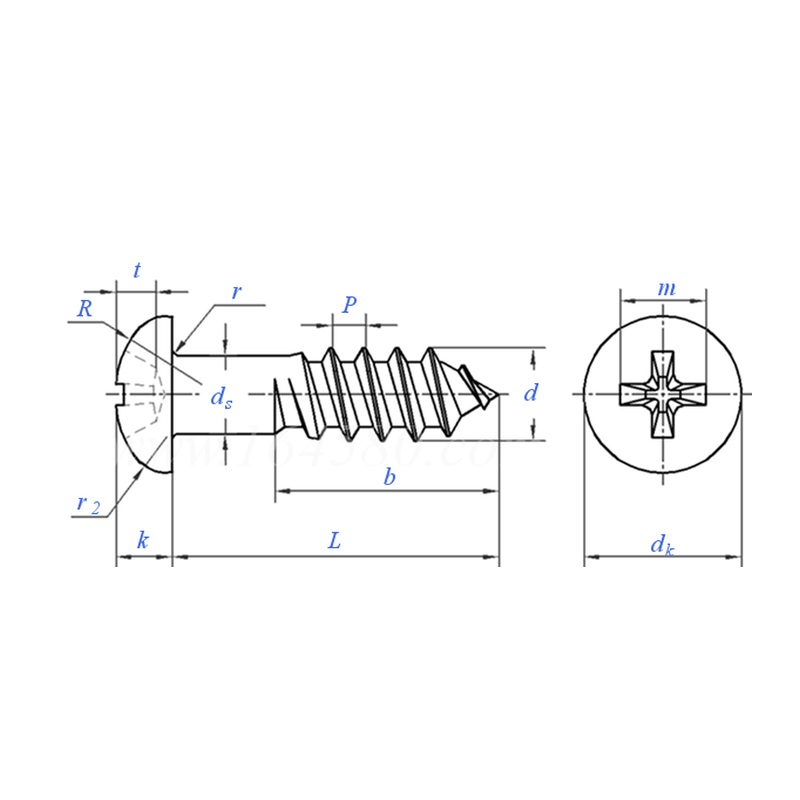

Product Specifications
| Model / Specification | 2-10 |
| Material | Carbon steel, Stainless steel |
| Thread size d | 2 | 2.5 | 3 | 3.5 | 4 | (4.5) | 5 | (5.5) | 6 | (7) | 8 | 10 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | Pitch | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.5 |
| ds | Min. | 1.86 | 2.25 | 2.75 | 3.2 | 3.7 | 4.2 | 4.7 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 |
| Max. | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 7 | 8 | 10 | |
| dk | Max. | 3.9 | 4.63 | 5.8 | 6.75 | 7.65 | 8.6 | 9.5 | 10.5 | 11.05 | 13.35 | 15.2 | 18.9 |
| Min. | 3.5 | 4.23 | 5.3 | 6.25 | 7.15 | 8 | 8.9 | 9.9 | 10.35 | 12.55 | 14.4 | 18.1 | |
| k | Max. | 1.6 | 1.98 | 2.37 | 2.65 | 2.95 | 3.25 | 3.5 | 3.95 | 4.34 | 4.86 | 5.5 | 6.8 |
| Min. | 1.4 | 1.78 | 2.07 | 2.35 | 2.65 | 2.95 | 3.2 | 3.65 | 3.94 | 4.46 | 5.1 | 6.4 | |
| Socket | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | |
| m | Ref. | 2.5 | 2.7 | 3.7 | 3.9 | 4.3 | 4.5 | 4.7 | 6.1 | 6.6 | 6.9 | 8.7 | 9.7 |
| r | ≈ | 0.2 | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| R | 2.3 | 2.6 | 3.4 | 4 | 4.8 | 5.2 | 6 | 6.5 | 6.8 | 8.2 | 9.7 | 12.1 | |
| r2 | 1.4 | 1.5 | 1.9 | 2.1 | 2.4 | 2.6 | 2.9 | 3.2 | 3.5 | 3.8 | 4.4 | 5.5 | |
| t | Max. | 1.32 | 1.52 | 1.63 | 1.83 | 2.23 | 2.43 | 2.63 | 2.78 | 3.26 | 3.56 | 4.35 | 4.75 |
| Min. | 0.9 | 1.1 | 1.06 | 1.25 | 1.64 | 1.84 | 2.04 | 2.16 | 2.65 | 2.93 | 3.77 | 5.35 | |
| Weight ≈ kg / 1000 pcs | - | - | - | - | - | - | - | - | - | - | - | - | |
| Thread length b | - | - | - | - | - | - | - | - | - | - | - | - | |
Dimensions in mm. The bracketed sizes ((4.5), (5.5), (7)) are non-preferred. Data compiled from GB/T 950-1986 for selection reference only; actual supply is subject to drawings and inspection reports.

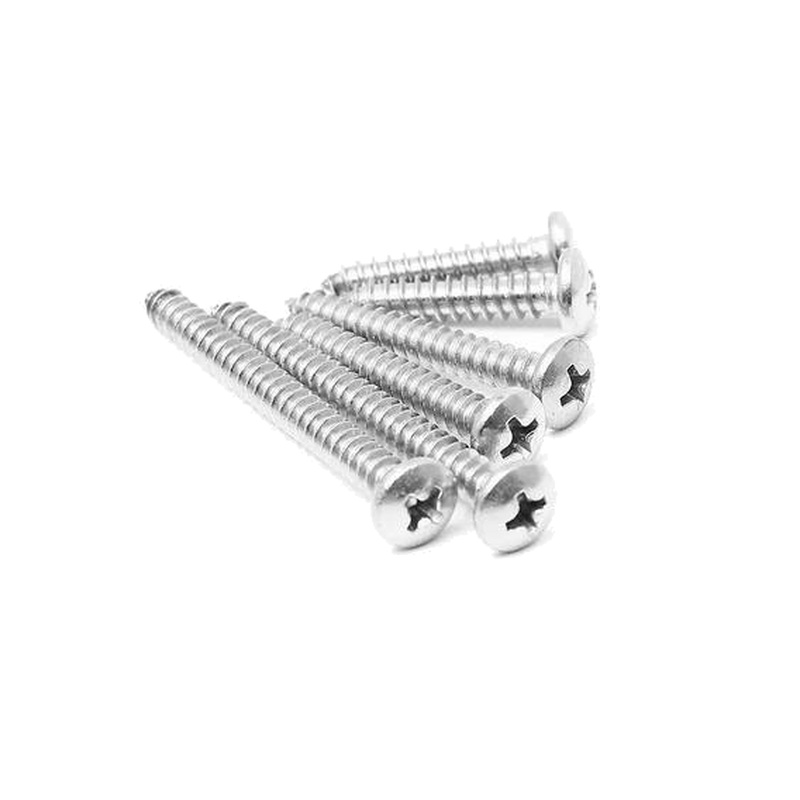

Product Overview
The cross recessed (Phillips) pan head wood screw is manufactured to GB/T 950-1986. Its round (pan) head carries a cross recess, so it can be driven quickly with a Phillips screwdriver or a power driver. The large bearing face of the pan head means the timber surface is not crushed, and the cross recess is self-centring so the bit is unlikely to slip out, making it suitable for volume assembly lines. The thread is a wood-screw type with a coarse pitch and a sharp tapered point that cuts the wood fibres as it is driven in.
1. Product Features
- Round (pan) head with a large bearing face, so the timber surface is not crushed when driving.
- Cross recess (Phillips) drive: usable with a Phillips screwdriver or power driver, self-centring and slip-resistant.
- Wood-screw thread with coarse pitch and sharp tapered point; drives smoothly into timber without splitting.
- Nominal diameters from 2 mm to 10 mm, a complete size range.
- Recess size is controlled to the standard to match standard Phillips bits.
2. Product Advantages
- The cross recess suits rapid power-tool assembly, clearly faster than slotted wood screws.
- The self-centring recess resists slipping and recess damage during volume assembly.
- The large pan head spreads the clamping load and avoids crushing the timber, giving a firm joint.
- High degree of standardisation: the GB/T 950 dimensional system is complete, which simplifies export matching and second sourcing.
3. Application Scope
- Wooden furniture, wooden packing cases and pallets.
- Building decoration, wooden doors and windows, and soft board fixing.
- Assembly of wooden parts in appliances, toys and handicrafts.
- Stainless steel versions suit damp or mildly corrosive environments such as outdoor woodwork and kitchen or bathroom fittings.
