SOCKET HEAD CAP SCREW — PRODUCT INTRODUCTION

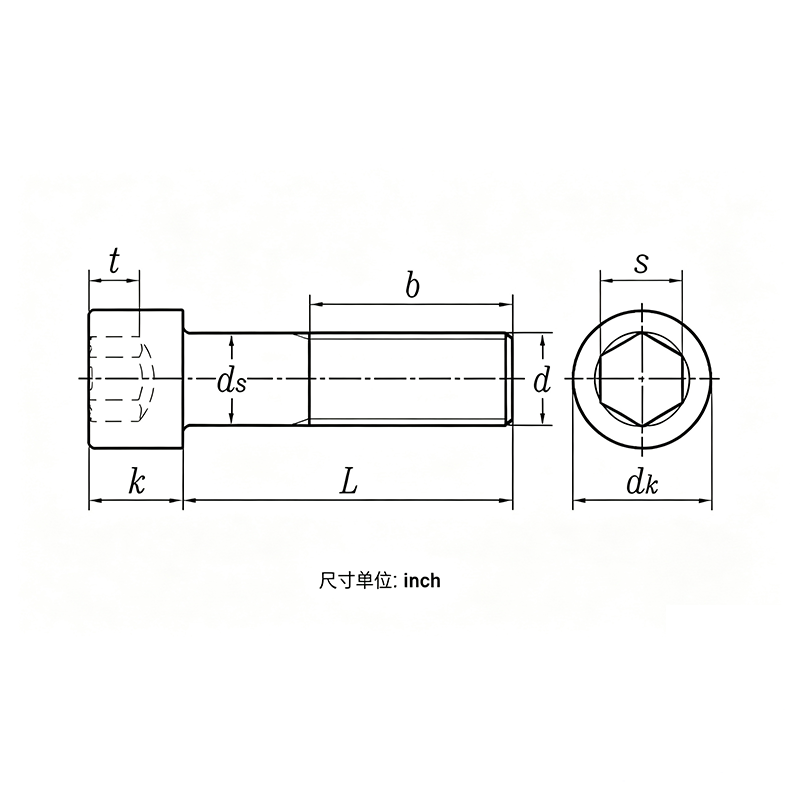

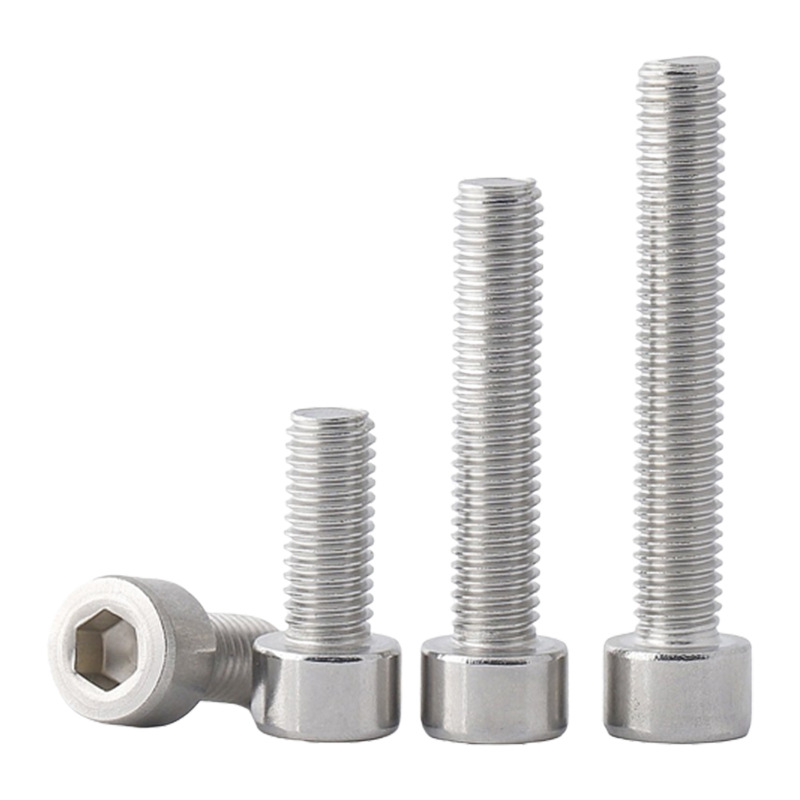

The Socket Head Cap Screw conforms to ASME B 18.3-2003 (R2008), with [Table 1A] specifically denoting its inch-series dimensional requirements. The screw features a flat-top cylindrical head with a precision-machined internal hex socket at the center, a fully or partially threaded shank, and American Unified Thread (UNC/UNF) threads. Materials primarily include alloy steel (ASTM A574) and stainless steel (ASTM F837), with heat treatment providing high tensile strength. The hex socket drive allows installation in confined spaces, making it a standardized, high-strength precision fastener widely recognized in machinery, molds, and precision equipment.

I. PRODUCT FEATURES

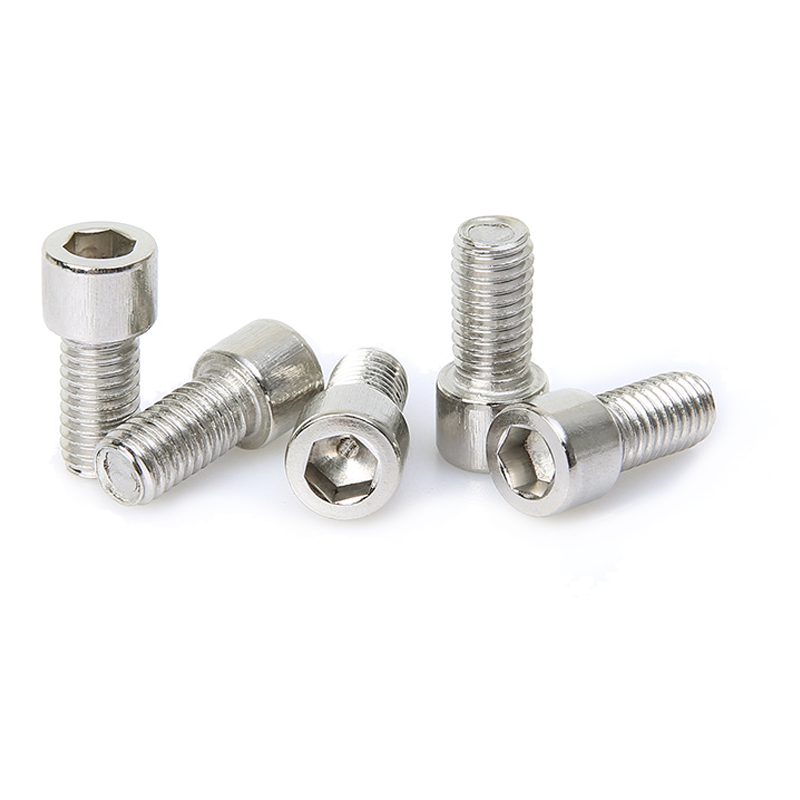

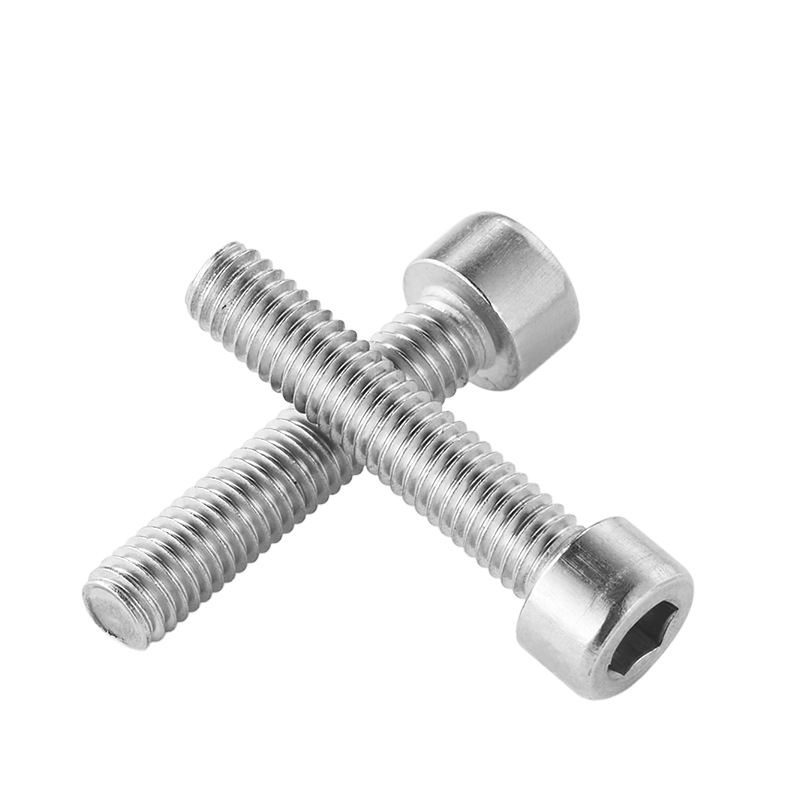

Flat-top cylindrical head design: The head is a standard low cylindrical body with a flat top surface and slight edge chamfer. The large head diameter provides a wide, flat bearing surface — often eliminating the need for separate washers.

Precision hex socket: The center of the head features a cold-forged internal hex socket that mates tightly with a standard hex key (Allen wrench), enabling precise torque transmission with minimal socket wear.

Inch thread system: UNC (coarse) or UNF (fine) threads — such as 1/4-20 UNC, 3/8-16 UNC, and others — with thread pitch and profile fully conforming to the ASME Unified Thread Standard.

High strength and hardness: Alloy steel material is quench-and-tempered to typically meet the ASME 180 ksi strength class, equivalent to metric Class 12.9.

Multiple surface finishes: Common options include black oxide (phosphate), zinc plating, nickel plating, and black oxide with oil coating, offering both corrosion protection and aesthetic finish variety.

II. PRODUCT ADVANTAGES

Minimal installation space: Hex key operation requires only the screw’s own diameter in clearance, making it ideal for multi-cavity molds, deep bores, and tightly packed component installations.

High tightening efficiency without slippage: The hex socket provides excellent centering and can withstand high input torque; when paired with pneumatic or electric hex bit drivers, rapid assembly is achieved, with the socket showing minimal wear on repeated use.

Excellent fit in tool-and-die applications: As a globally standardized component, it offers uniform specifications, strong interchangeability, and easy field maintenance and replacement.

High load-bearing capacity: The cylindrical head can withstand substantial preload forces; combined with high-strength material, it is suitable for connections subject to shock, vibration, and heavy loads — preventing bearing surface crushing.

Clean and professional appearance: After installation, only the neat cylindrical head is visible, creating a clean, professional look that meets the requirements of industrial products and export equipment.

III. APPLICATION AREAS

Molds and tooling fixtures: Fastening of cavities, backing plates, and stripper plates in injection molds; assembly of stamping die components and tooling fixtures.

Machine tools and power equipment: Fastening of spindle housings, tool turrets, and gearboxes in machine tools; auxiliary component connections in engines and compressors.

Industrial machinery and automation equipment: Joints in robotic arms, linear rail clamping blocks, and fluid valve body connections at structurally critical points with high-strength requirements.

Hydraulic and pneumatic components: Hydraulic valve blocks, cylinder end caps, manifold side plates, and fasteners in confined or blind-hole locations.

Other closely packed structures: Equipment housings in printing machinery, textile machinery, and packaging machinery — applications where smooth, unobstructed surfaces are essential.
