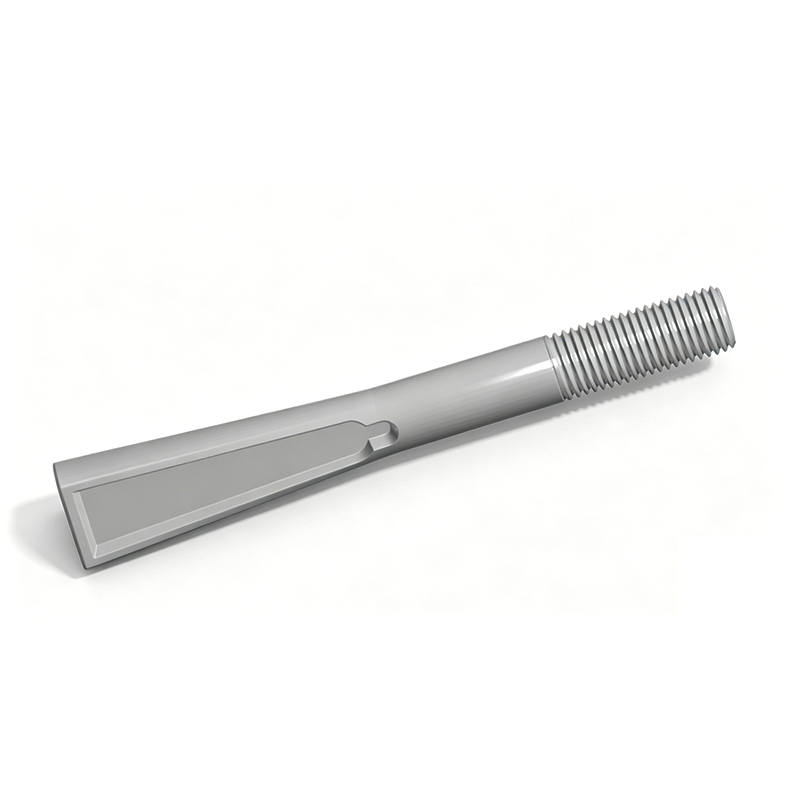

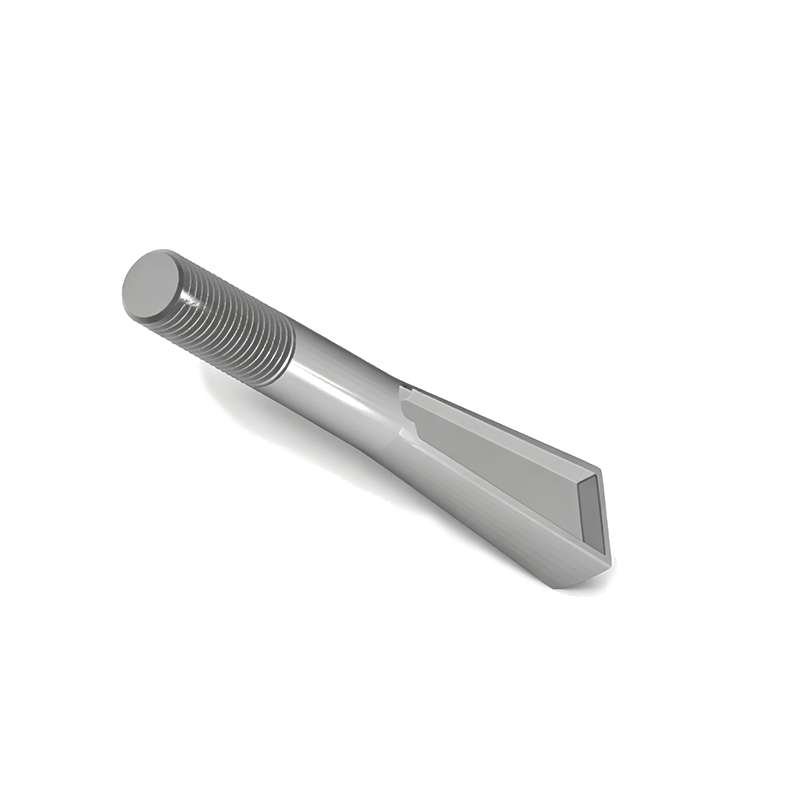

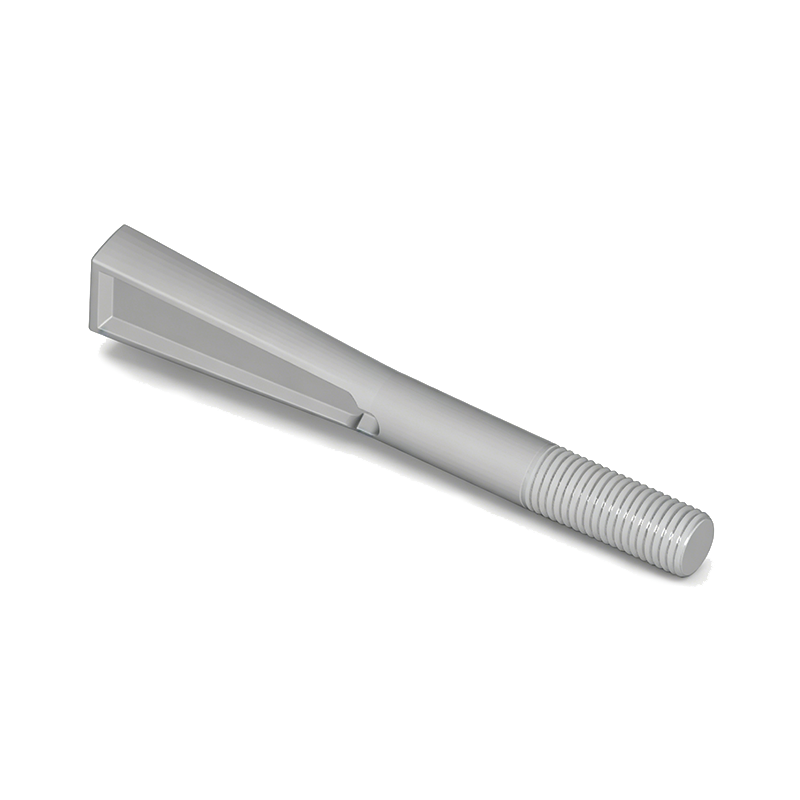

Type F Foundation Bolt — Product Introduction

The Type F Foundation Bolt is a specialized anchor bolt manufactured in accordance with the German industrial standard DIN 529-1986, with specifications covering M8 to M48. Its F-shaped hook structure is specially designed to provide reliable anchoring force after installation. The product can be made from various materials including carbon steel and stainless steel, and can undergo different surface treatments depending on the operating environment. It is widely applicable in engineering scenarios such as mechanical equipment and steel structures that require solid foundation anchoring.

I. Product Features

Manufactured to DIN 529 German Standard: Strictly produced in accordance with DIN 529-1986 standard, with high dimensional accuracy and reliable quality, covering specifications from M8 to M48.

F-Type Hook Anchoring Structure: The unique F-shaped hook design forms a solid mechanical interlock when embedded in concrete, providing stable pull-out resistance.

Diverse Material Options: Available in carbon steel, stainless steel, copper alloys, aluminum alloys, titanium alloys, and other materials to meet strength and anti-corrosion requirements in different environments.

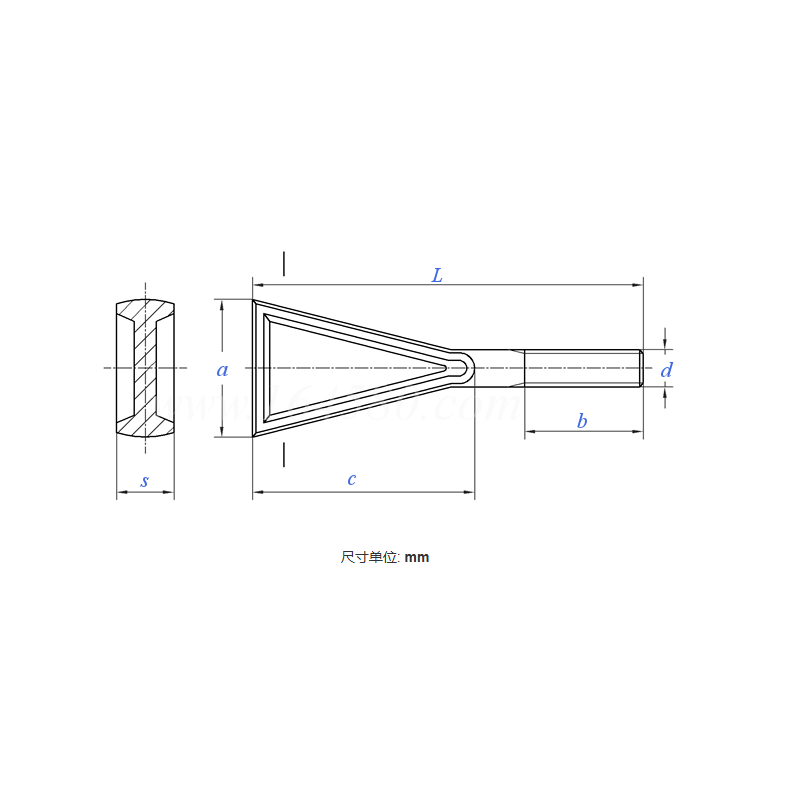

Standardized Specifications: Each specification from M8 to M48 has clearly defined dimensional parameters (thread pitch, thread length, hook dimensions, etc.), facilitating selection and procurement.

II. Product Advantages

Stable and Reliable Anchoring Performance: The F-shaped hook structure bonds tightly with concrete, effectively resisting uplift forces and vibration loads generated during equipment operation, ensuring safe equipment operation.

Standardized Production with Controlled Quality: Manufactured according to DIN 529 international standard, with guaranteed dimensional accuracy and mechanical performance, stable product quality, and good interchangeability.

Flexible Anti-Corrosion Solutions: Different materials and surface treatment methods can be selected according to the operating environment, such as hot-dip galvanizing and Dacromet, meeting anti-corrosion requirements for outdoor, humid, chemical, and other corrosive environments.

Wide Range of Applications: Complete specification coverage from M8 to M48 can accommodate various foundation anchoring needs from light equipment to medium-sized industrial equipment.

III. Application Scope

The Type F Foundation Bolt is suitable for various engineering scenarios requiring solid concrete foundation anchoring, specifically including:

Mechanical Equipment Foundations: Foundation anchoring for small to medium-sized compressors, pumping equipment, fans, air conditioning units, and similar equipment.

Steel Structure Buildings: Column base anchoring for light steel structure workshops, storage warehouses, and equipment platforms.

Power and Communication Facilities: Support structures for power distribution equipment, communication equipment foundations, and small tower anchoring.

General Industrial and Civil Construction: Industrial equipment platforms, small crane foundations, and foundation embedment for various equipment supports.
