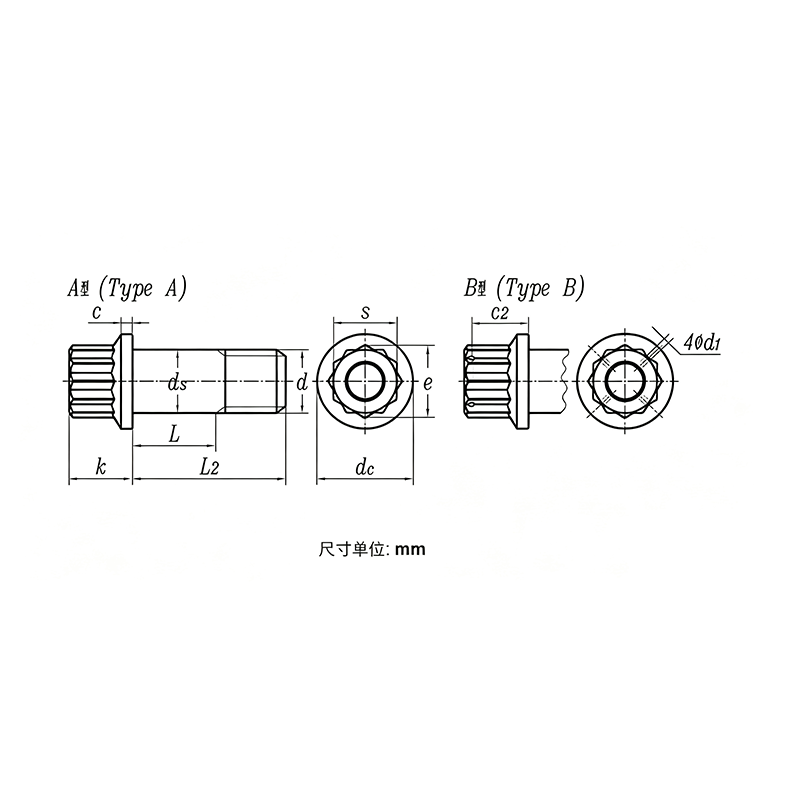

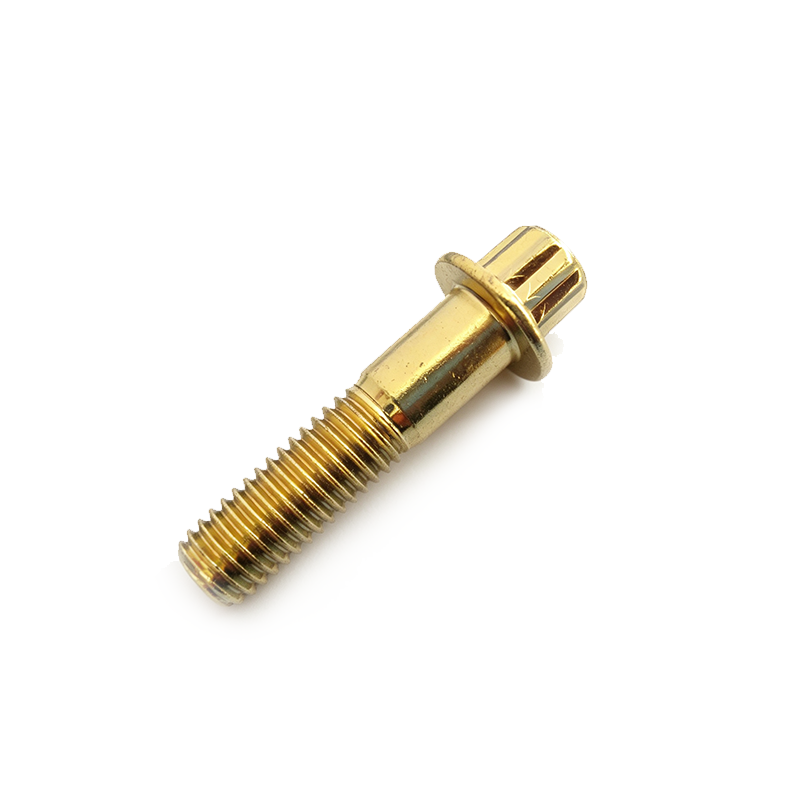

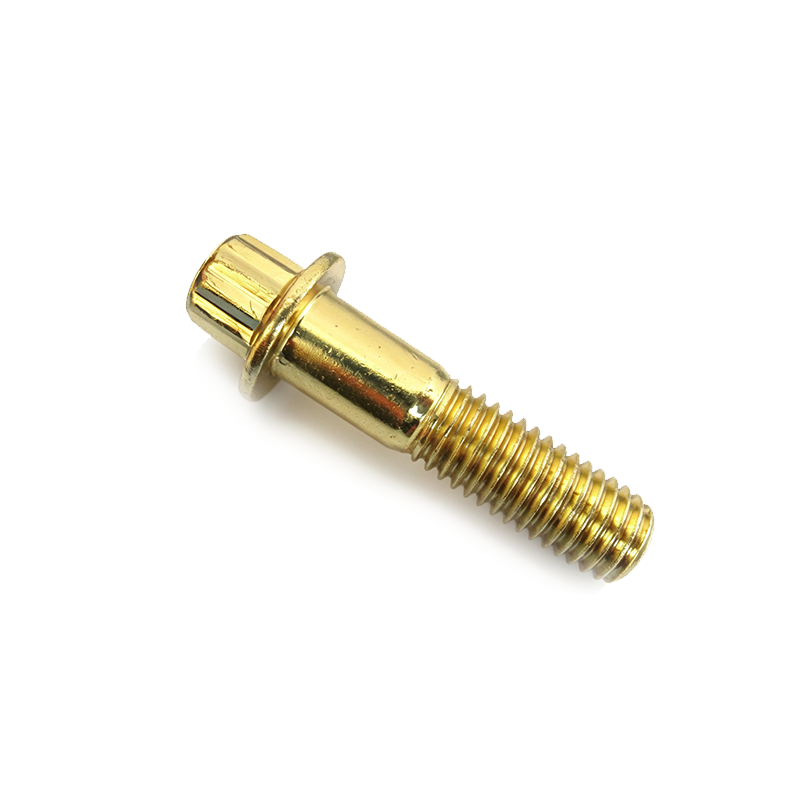

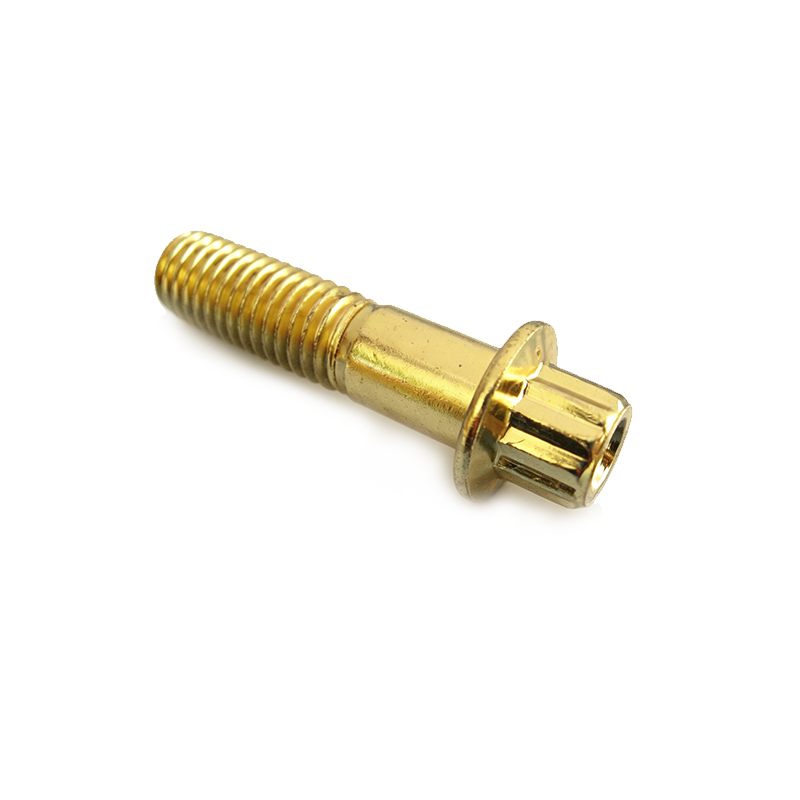

MJ THREAD TITANIUM ALLOY TWELVE-POINT FLANGE BOLT — PRODUCT INTRODUCTION

The MJ thread titanium alloy twelve-point flange bolt, manufactured to DIN 65438-1993, is a high-strength fastener specifically designed for aerospace and high-performance applications. Made from Ti-6Al-4V (TC4) titanium alloy and featuring an MJ reinforced thread form and twelve-point flange head design, this bolt combines lightweight construction, high fatigue strength, and excellent corrosion resistance. It must be used in combination with matching twelve-point flange lock nuts of the same standard, and can operate reliably at temperatures up to 315°C, primarily serving aircraft structural connections where high loads, high vibration, and strict weight reduction are required.

I. PRODUCT FEATURES

MJ REINFORCED THREAD FORM: The MJ thread features an enlarged root radius, significantly reducing stress concentration and fundamentally improving the fatigue life of the threaded section — the defining characteristic that distinguishes it from standard metric threads.

TWELVE-POINT FLANGE HEAD DESIGN: The head provides 12 torque flats, allowing wrench access with just 30° of swing in confined spaces for rapid fastening, while achieving extremely high torque transmission. The integrated flange face delivers uniform bearing pressure, eliminating the need for a separate washer.

Ti-6Al-4V TITANIUM ALLOY MATERIAL: Offers high tensile strength of approximately 1100 MPa with a density only about 60% that of steel, delivering an exceptional strength-to-weight ratio. It is naturally corrosion-resistant and non-magnetic.

STRICT SURFACE LUBRICATION CONTROL: To overcome titanium’s tendency toward galling, bolt surfaces are typically coated with molybdenum disulfide dry-film lubricant, cetyl alcohol, or aluminum plating to stabilize friction coefficients and ensure consistent preload.

II. PRODUCT ADVANTAGES

EXCEPTIONAL STRUCTURAL EFFICIENCY: Leveraging titanium alloy’s high specific strength and the fatigue resistance of MJ threads, this bolt can substantially reduce structural weight at equivalent strength levels, or enhance connection reliability without adding weight — making it a key enabler in aircraft weight reduction design.

OUTSTANDING FATIGUE AND VIBRATION RESISTANCE: The radiused root design of the MJ thread form effectively distributes stress, giving this bolt a fatigue life far exceeding that of conventional bolts under alternating loads and severe vibration, ensuring flight safety.

EXCELLENT ENVIRONMENTAL ADAPTABILITY: Titanium alloy’s corrosion resistance allows direct resistance to salt spray, moisture, and industrial atmospheres without reliance on protective plating. It maintains stable performance across a wide temperature range.

SUPERIOR INSTALLATION AND ANTI-LOOSENING PERFORMANCE: The twelve-point head with integrated flange enables efficient tightening in confined spaces and provides reliable locking effect and load distribution, reducing the risk of joint loosening.

III. SCOPE OF APPLICATION

AEROSPACE STRUCTURES: High-stress, high-safety-critical connections in aircraft such as fuselage spars, wing-to-center-box joins, landing gear structures, engine pylon attachments, and control surface hinges.

HIGH-PERFORMANCE RACING AND AUTOMOTIVE: Racing suspension systems, chassis reinforcement members, engine internals, supercharging systems, and carbon fiber/aluminum alloy composite structures in top-tier supercars.

ADVANCED WEAPONS SYSTEMS: Interstage joints of missile and rocket bodies, wing-fold mechanisms, military UAV structures, and shipboard weapons launch platforms — meeting requirements for weight reduction, corrosion resistance, and high dynamic response.

PREMIUM MARINE AND OUTDOOR EQUIPMENT: Mast bases and structural connections in racing boats and sailing yachts, as well as premium bicycle frames and suspension systems — leveraging lightweight and fully rust-proof characteristics.
