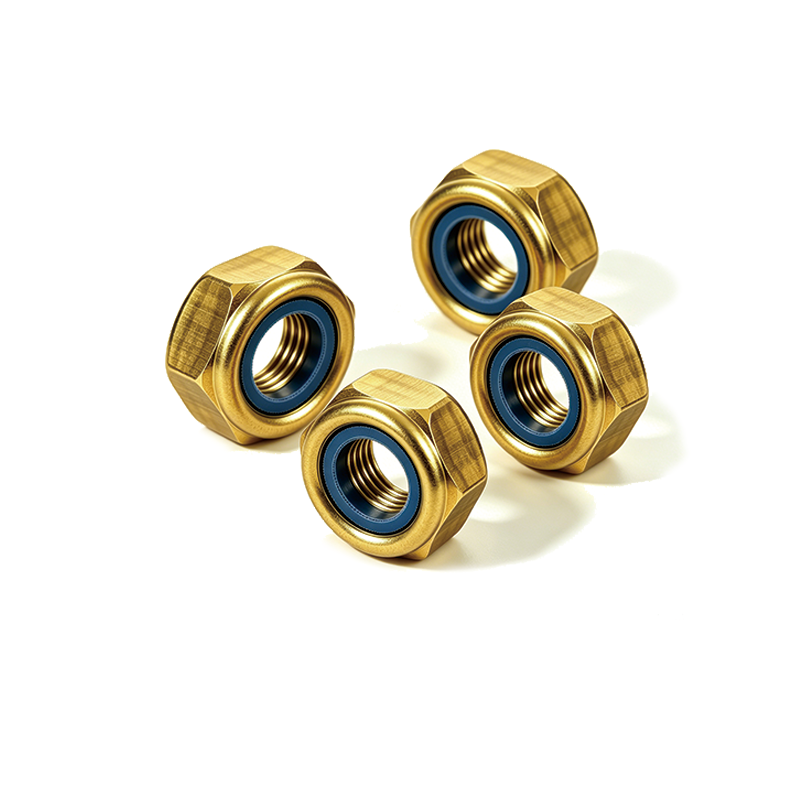

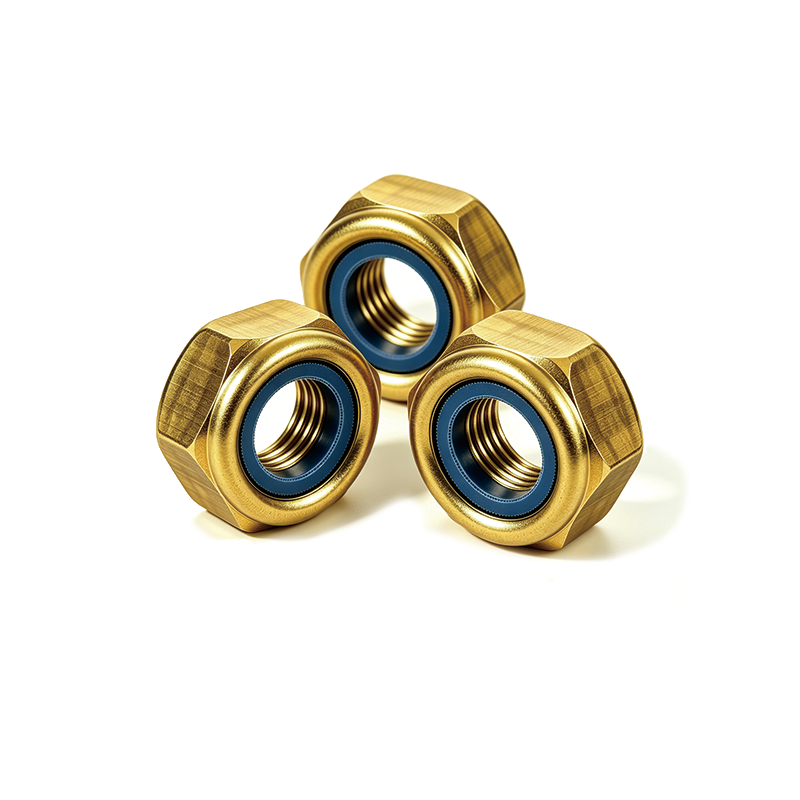

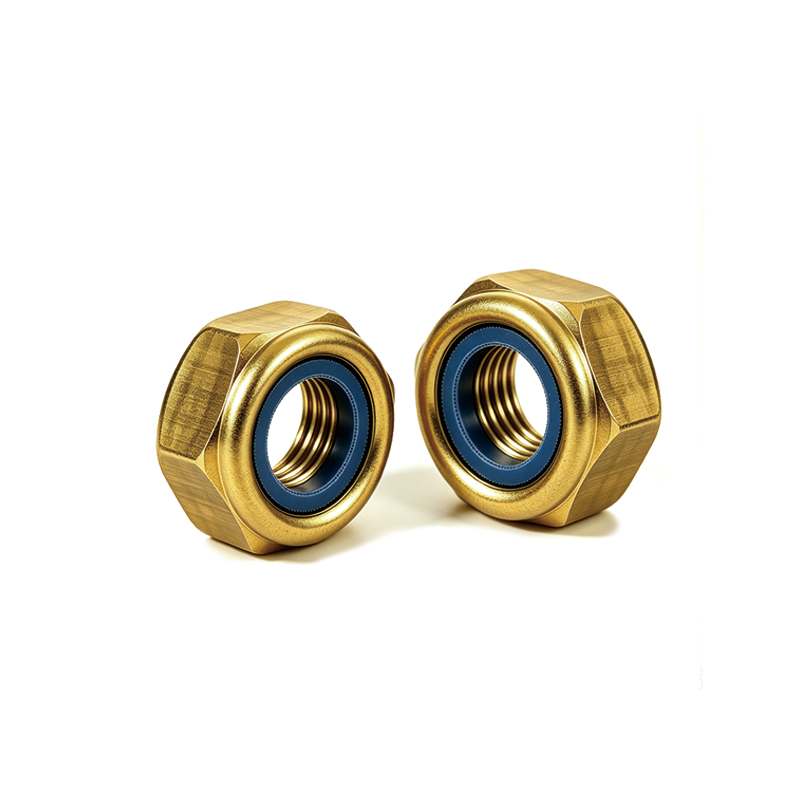

Nylon Insert Lock Nut / Nylon Anti-Loosening Nut

GB/T 6182

Wohe Fastener is based in Yongnian, Handan, China. We supply export-ready fasteners with specification review, packing support and stable batch delivery.
?
Multiple Sizes Common sizes and standards can be matched for overseas orders.
?
Material Options Carbon steel, stainless steel, grade and surface finish options.
?
Stable Supply Production, inspection, packing and shipment coordination.
Specifications
Product categoryNuts
Product codeWH-211635
Published2026-08-01 02:16:38
Production originYongnian District, Handan, Hebei, China
Call Sales
Wohe Fastener

Product Specifications

Model / SpecificationM8–M39
MaterialCarbon Steel, with iridescent (color) zinc plating



Thread Spec.
D



 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39)

P		 Pitch (Fine) 1 1.25 1.5 1.5 1.5 2 2 2 2 2 2 2 3 3
Pitch (X-Fine) / 1 1.25 / / 1.5 1.5 1.5 / / / / / /
da Max. 8.75 10.8 12.96 15.12 17.28 19.44 21.6 23.76 25.92 29.16 32.4 35.64 38.88 42.12
Min. 8 10 12 14 16 18 20 22 24 27 30 33 36 39
dw Min. 11.63 14.63 16.63 19.64 22.49 24.85 27.7 31.35 33.25 38 42.75 46.55 51.11 55.86
e Min. 14.38 17.77 20.03 23.36 26.75 29.56 32.95 37.29 39.55 45.2 50.85 55.37 60.79 66.44
h Max. = Nom. 9.5 11.9 14.9 17 19.1 21.2 23 25 27.1 29.9 32.6 35.7 38.9 41.9
Min. 8.92 11.2 14.2 15.9 17.8 19.9 20.9 22.9 25 27.8 30.1 33.5 36.4 39.4
m Min. 6.44 8.04 10.37 12.1 14.1 15.1 16.9 18.1 20.2 22.5 24.3 27.4 29.4 31.8
mw Min. 5.15 6.43 8.3 9.68 11.28 12.08 13.52 14.48 16.16 18 19.44 21.92 23.52 25.44
s Max. = Nom. 13 16 18 21  24 27 30 34 36 41 46 50 55 60
Min. 12.73 15.73 17.73 20.67 23.67 26.16 29.16 33 35 40 45 49 53.8 58.8
FAQ

Procurement Questions

Common procurement questions about specification, material, finish and delivery.

Please confirm the application position, load, connection thickness and working environment first, then match diameter, length, thread pitch, material, strength grade, surface finish and applicable standard. Drawings, photos or old samples help us quote more accurately.

Hot-dip galvanizing and Dacromet are common choices for outdoor applications. For humid, coastal or chemical environments, stainless steel 304/316 or higher corrosion-resistant solutions may be better.

Please provide drawings or 3D files, material, dimensions, tolerance, grade, surface treatment, packing method and quantity. If drawings are not ready, samples or installation photos can also be reviewed.

Bolts and nuts should match nominal diameter, thread pitch, thread type, standard and strength grade. High-strength connections should also use suitable washers and anti-loosening solutions.

APPLICATIONS

Application Scenarios

Choose material, grade and surface treatment based on real working conditions.

Construction

Steel structures, curtain walls, embedded parts and site assembly.

Machinery

Equipment assembly, maintenance parts and frame fixing.

Solar Mounting

Outdoor brackets, corrosion resistance and weather exposure.
